959

This family is named after the first model that was released for sale; two models are equipped with the 959 chassis:

– Porsche 959 model number 58059, released to sales in 1986 and available on the market until 1992
– Toyota Celica Gr.B model number 58064, released to sales in 1987 and available on the market until 1992

This model rightfully enters the golden age of Tamiya, which includes the first 100 models with a single extension represented by those models that are an evolution of the first 100. These are the specifications of this family;

– 4WD – four-wheel drive with independent suspension (a very delicate part) with coil springs and oil shock absorbers (a system that was no longer used on other Tamiya models in 2023)
– plastic monocoque chassis,
– standard ball bearings,
– rubber wheels based on the tread of rally road wheels,
– front light system (also a first for Tamiya) that were powered from the main battery via a special connector of the MSC – mechanical speed control system that was developed only for this chassis and
– RZ-540VZ Technygold electric motor

The monocoque plastic chassis was developed especially for this model with a wheelbase of ~210 mm in order to be able to install the 1/12 scale body against the normal 1/10 scales developed up to that time. The development of this model must surely have been an engineering challenge for Tamiya, which until then had mainly launched pure off-road or road-going models on the market. With the Porsche 959 a new solution was introduced that could be used on asphalt as well as off-road. Another challenge was to be able to reduce the size of the mechanics to comply with the dimensions of a 1/12 scale car: the motor was installed centrally with the two servos for steering and the MSC – mechanical speed control system – on the side.
Parts list of both models:

Porsche 959
Definitely state-of-the-art for radio model design, see picture of the parts of this car taken from a 1987 Tamiya catalogue.

The Porsche 4WD rally car that took part in the Paris Dakar reproduced in 1/12th scale was one of the first models with a polycarbonate-lexan body with the most details: for example, the door handles of the car as they were carefully reproduced. Until then, lexan bodies were obtained by mechanically pressing a sheet of lexan onto a hot mould to reproduce the desired shape. Once the parts cool down, the lubricant previously sprayed onto the mould allows the shaped sheet and the mould itself to separate. The body of the Porsche 959 features a front nose and sides designed to fit within the contours of the car, curves that were impossible to achieve with a standard mould. In order to be able to produce the body so well finished and with the right shape, Tamiya had developed a complex system of moulds in which the Lexan sheet was pushed ‘blown’ by a flow of hot air that acted homogeneously to make the lexan sheet adhere to all the surfaces of the mould. Only in this way was it possible to obtain all the details that had been designed. The mould was then opened in two parts so that the finished body could be taken out. The system worked very well, but led to different body thicknesses.
Today these shapes are achieved with a multi-mould system. This body was one of the strengths of this model, but over time it proved to be a weak point; many parts were so thin that they would break on first impact. It can be said that the body was as well made as it was fragile.

The variable thickness of the body was not the only sore point, because the colour scheme was two-tone with several parts to be added later:

– rear headlights on the roof of the car
– rear spoiler,
– driver + navigator,
– rear view mirrors,
– rear engine exhaust system and front light system.
Everything described made the body delicate and at the slightest impact they could break at these points:

– front bumper,
– right and left front wheel arches,
– right and left rear corner where the spoiler was housed.

There are two series of stickers; the older one had the cigarette brand Rothmans as main sponsor, then to avoid contravening the laws of some countries against tobacco advertising after a few months from release Rothmans became Racing. There are a number of advertisements that Tamiya or the various importers around the world have published in trade magazines, in the image below is an example in German showing all the construction data of the model.

Toyota Celica Gr.B
Tamiya only uses this chassis in a sister car, the Celica Gr. B model number 58064. Most of the spare parts for the Celica can be fitted to the Porsche 959. The pictures show the differences between the Celica Gr. B and the Porsche 959. The Celica certainly is the development of the Porsche In order starting from the first picture going from top to bottom, in the left column you will find the Porsche 959 highlighted in blue and in the right column the Celica Gr.B highlighted in red, the two models differ in:

– central differential present on the Celica Gr.B only, Porsche has a fixed gear. This was the first major development on the second car released with this chassis

– the axle carrying the movement from the rear assembly to the front assembly

– bottom – car bumper that is divided into front and rear

– antenna only present in the Porsche 959

– rear attachments of the two bodies which, being different, have a different anchoring system to the body

– front anti-roll bar only present on the Celica Gr.B. This was the second major development on the second car released with this chassis

– installation of the MSC – mechanical speed control system, at the front for the Porsche 959 and behind the left front wheel for the Celica Gr.B
– front bumper

– front attachments of the two bodies which, being different, have a different anchoring system to the car body

– body

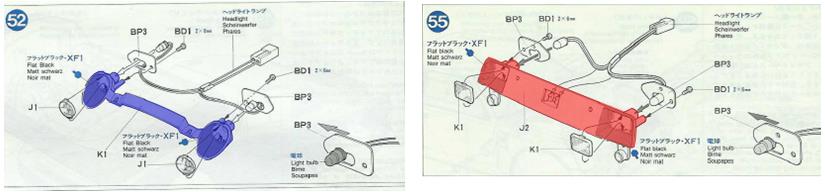

– front light system
